Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 320x86BLx49 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | ||
| High Light: | ISO9001 Skid Steer Rubber Tracks,320x86BLx49 Skid Steer Tracks,Low noise Skid Steer Rubber Tracks |
||

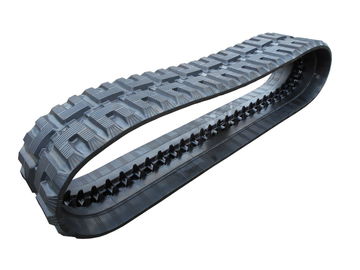

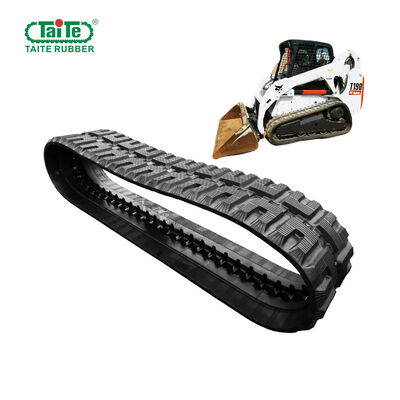

Product description
Length: 4214mm
Size Width(mm) x Pitch(mm) x Links: 320x86BLx49
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |
| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) | Inner guide width(A) | Outer guide | Inner width height (C) | Outer width height (D) | Track thickness (E) | Lug pattern | Guide type | Max machine weight (kg) | Remarks |
| 180x72 | 23 | 64 | 29 | 26.5 | 67 | E/F | B | 1000 | |
| 180x72K | 23 | 64 | 29 | 26.5 | 67 | F | C | 1200 | |
| 230x72 | 24 | 73 | 29 | 27 | 70 | E/F/I | B | 1400 | |
| 230x72K | 48 | 96 | 45 | 34 | 112 | F | C | 1700 | |
| 265x72 | 23 | 78 | 30 | 26 | 72.5 | F | B | 2500 | |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
10) Endless steel cable
11) Maintains excellent traction throughout tread life
Packaging & Delivery
Features
Taite’s tracks are designed to combat the harshest conditions and improve the efficiency of earthmoving work. Our products recognise the importance of productivity. This is why our highly experienced expert technical team is committed to supplying the correct rubber track fitting, to ensure maximum wear-life and minimal down-time.
