Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 450x86BCx60 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | Technology: | Endless Steel Cable |
| Max Weight: | 5000kg | ||
| High Light: | High Performance Continuous Rubber Tracks,Continuous Rubber Tracks 450 X 86BC X 60,299C Continuous Rubber Tracks |
||

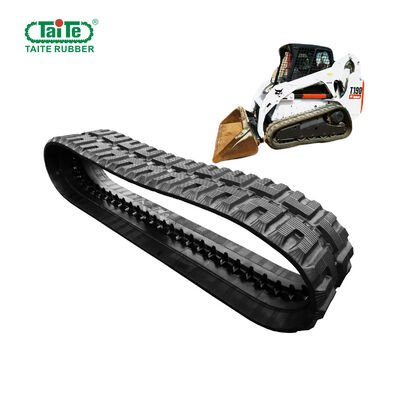

299C Track Loader Rubber Tracks , CTL Rubber Tracks 450 X 86BC X 60
Product description
Description :balck rubber track 450x86BCx60 for skid steer loader 299C
Specifcation
Length: 5160mm
Size Width(mm) x Pitch(mm) x Links: 450x86BCx60
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |
| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) |
Inner guide width(A) |
Outer guide |
Inner width height (C) |
Outer width height (D) |
Track thickness (E) |

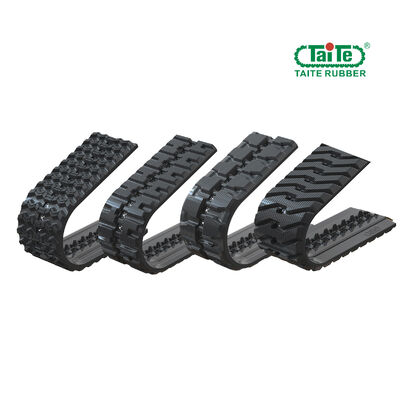

Lug pattern |
Guide type |
Max machine weight (kg) |
Remarks |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
Packaging & Delivery
FAQ
1. How can I place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / Email / Phone, in case of any delays. |
2. What is the minimum order quantity? There is no limit for testing orders, i.e. a pair of rubber tracks are acceptable, but for long-term cooperation, we prefer full container basis. |
3. How about the warranty? 1000 hours using time or 1 year starting from the BL date whichever comes first. |
4. What is your terms of delivery? We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. |
5. What is your supply ability? 1000 Piece/Pieces per Month. |
