Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 450x86SWMx52 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | Technology: | Endless Steel Cable |
| Max Machine Weight: | 4000kg | Machine Type: | JCB 1110 |
| Lug Pattern: | Swave | ||
| High Light: | rubber tracks,bobcat rubber tracks |
||

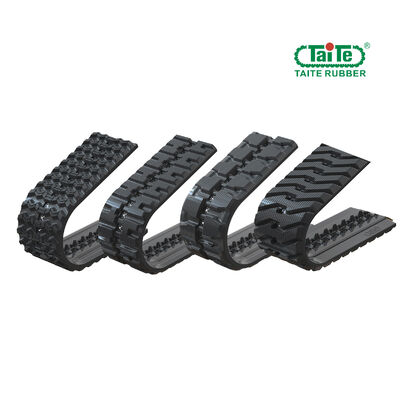

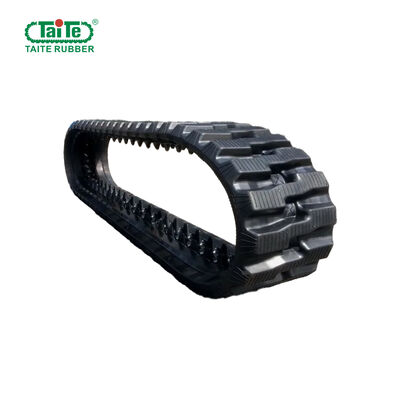

OEM quality rubber track sized in 320x86SWMx52 for JCB 1110 skid steer loaders, more tread patterns available
Product description
| Manufacturer | Machine | original Track size | TAITE-track | Tread Profile | ||
| JCB | 1110 | 450 | 86 | 52 | 450x86x52 | BB/BC/BL |
Length: 4472mm
Size Width(mm) x Pitch(mm) x Links: 450x86x52
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |
| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) |
Inner guide width(A) |
Outer guide |
Inner width height (C) |
Outer width height (D) |
Track thickness (E) |
Lug pattern |
Guide type |
Max machine weight (kg) |
Remarks |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
Packaging & Delivery
Features:
Why choose Taite’s rubber tracks? Because, we offers you the track with the quality of original OEM track with reasonable cost.
Not only that, consider the following features that make our tracks stand out from all the rest:
1. Highly specialized rubber formula: we investigate the working terrain and conditions of every product, and choose or customize best rubber formula.
2. Special treated metal core: after complete shot blasting the metal core will be purified by dedicated liquid, and then coated 2 times with high performance adhesives to ensure strong bonding strength with rubber.
3. Higher vulcanizing pressure: giving higher density of the rubber which makes it durable
4. Precise vulcanizing period: the vulcanizing time is very critical, both too long and too short may lead to insufficient rubber performance. Our vulcanizing time is verified by thousands of tests and proved to be the best.
