Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 320x86BLx52 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | Technolgy: | Endless Steel Cable |
| High Light: | 320x86blx52 skid steer tracks,ISO9001 replacement rubber tracks,skid steer rubber tracks OEM |
||
Product description

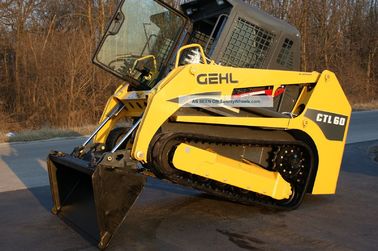

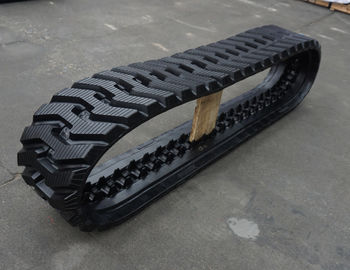

High-performance 320x86BLx52 Rubber Track for Skid Steer Loader GEHL-TAKEUCHI CTL60-tpye 2 with Strong Tread Profile.

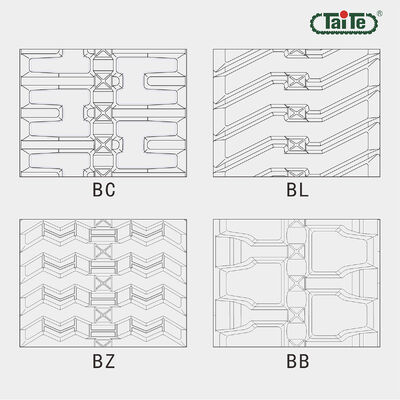

| Manufacturer | Machine type | orig. width | orig. pitch | orig. links | TAITE-Track | Tread Pattern |
| BOBCAT | 864 SSL 12" C-Profile | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | T 180 C-Profile | 320 | 86 | 49 | 320x86x49 | BB/BC/BL |
| BOBCAT | T 190 C-Profile | 320 | 86 | 49 | 320x86x49 | BB/BC/BL |
| BOBCAT | T 200 12" C-Profile | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| MUSTANG-TAKEUCHI | MTL 16, 1-type | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| TAKEUCHI | TL 126 | 320 | 86 | 48 | 320x86x48 | BB/BC/BL |
| TAKEUCHI | TL 130, 1-type | 320 | 86 | 48 | 320x86x48 | BB/BC/BL |
| TAKEUCHI | TL 130, 2-type | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| TAKEUCHI | TL 26 | 320 | 86 | 48 | 320x86x48 | BB/BC/BL |
| TAKEUCHI | TL 26S | 320 | 86 | 48 | 320x86x48 | BB/BC/BL |
| Case New Holland | TR270 | 320 | 86 | 50 | 320x86x50 | BB/BC/BL |
Length: 4472mm
Size Width(mm) x Pitch(mm) x Links: 320x86BLx52
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |
| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) |
Inner guide width(A) |
Outer guide |
Inner width height (C) |
Outer width height (D) |
Track thickness (E) |
Lug pattern |
Guide type |
Max machine weight (kg) |
Remarks |
| 180x72 | 23 | 64 | 29 | 26.5 | 67 | E/F | B | 1000 | |
| 180x72K | 23 | 64 | 29 | 26.5 | 67 | F | C | 1200 | |
| 230x72 | 24 | 73 | 29 | 27 | 70 | E/F/I | B | 1400 | |
| 230x72K | 48 | 96 | 45 | 34 | 112 | F | C | 1700 | |
| 265x72 | 23 | 78 | 30 | 26 | 72.5 | F | B | 2500 | |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
