Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 320x86BBx50 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | Technology: | Endless Steel Cable |
| High Light: | bobcat rubber tracks,rubber tracks for skid steer loaders,CTL Rubber Tracks 320x86BBx50 |
||
Product description

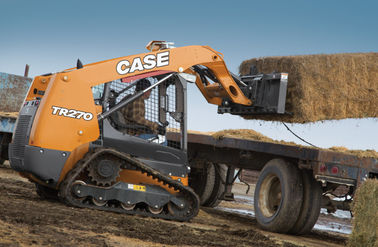

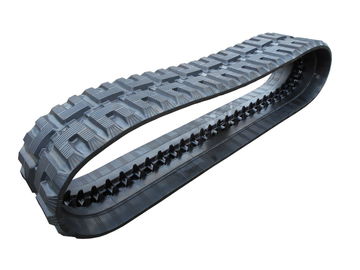

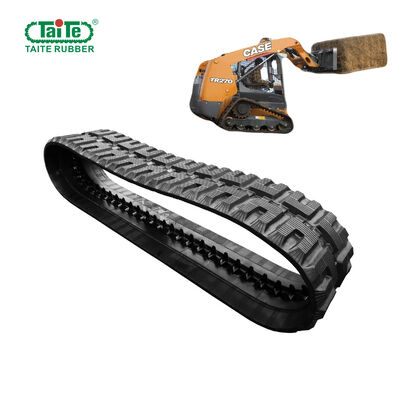

Long Service Life CTL Rubber Track 320x86BBx50 for Skid Steer Loader CASE NEW HOLLAND TR270 with Strong Inner Structure
| Manufacturer | Machine | original Track size | TAITE-track | Tread Profile | ||
| Case New Holland | TR270 | 320 | 86 | 50 | 320x86x50 | SW/BB/BC/BL |
| BOBCAT | 864H | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | 864SSL12"C-Profile | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | MX335 | 320 | 86 | 55 | 320x86x55 | BB/BC/BL |
| BOBCAT | T180C-Profile | 320 | 86 | 49 | 320x86x49 | BB/BC/BL |
| BOBCAT | T190C-Profile | 320 | 86 | 49 | 320x86x49 | BB/BC/BL |
| BOBCAT | T200 12"C-Profile | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | T250 | 320 | 86 | 55 | 320x86x55 | BB/BC/BL |
| BOBCAT | T300 | 320 | 86 | 55 | 320x86x55 | BB/BC/BL |
| BOBCAT | T320 | 320 | 86 | 55 | 320x86x55 | BB/BC/BL |
| BOBCAT | T630 | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | T650 | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| BOBCAT | T770 | 320 | 86 | 55 | 320x86x55 | BB/BC/BL |
| 259 B3 | 320 | 86 | 53 | 320x86x53B | BB/BC/BL | |
| GEHL-TAKEUCHI | CTL60-tpye 1° | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
| GEHL-TAKEUCHI | CTL60-tpye 2° | 320 | 86 | 52 | 320x86x52TK | SW/BB/BC |
| JCB | ROBOT180T | 320 | 86 | 50 | 320x86x50 | BB/BC/BL |
| JCB | ROBOT190T/1100T | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| KOMATSU | CK20 | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| KOMATSU | CK25 type 1° | 320 | 86 | 52 | 320x86x52 | BB/BC/BL |
| KOMATSU | CK25 type 2° | 320 | 86 | 56 | 320x86x56 | BB/BC/BL |
| KOMATSU | CK30-1 | 320 | 86 | 56 | R320x86x56 | BB/BC/BL |
| KOMATSU | CK35-1 | 320 | 86 | 56 | R320x86x56 | BB/BC/BL |
| MUSTANG-TAKEUCHI | MTL16,1-type | 320 | 86 | 52 | 320x86x52TK | SW/BB/BC/BL |
| NEUSON | 180T(Skidsteerloader) | 320 | 86 | 50 | 320x86x50 | BB/BC/BL |
| NEW HOLLAND | C175(Skidsteerloader) | 320 | 86 | 50 | 320x86x50 | BB/BC/BL |
| TAKEUCHI | TL120 | 320 | 86 | 46 | 320x86x46TK | SW/BB/BC |
| TAKEUCHI | TL126 | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
| TAKEUCHI | TL130,1-type | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
| TAKEUCHI | TL130,2-type | 320 | 86 | 52 | 320x86x52TK | SW/BB/BC |
| TAKEUCHI | TL220 | 320 | 86 | 46 | 320x86x46TK | SW/BB/BC |
| TAKEUCHI | TL230,1-type | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
| TAKEUCHI | TL230,2-type | 320 | 86 | 52 | 320x86x52TK | SW/BB/BC |
| TAKEUCHI | TL26 | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
| TAKEUCHI | TL26S | 320 | 86 | 48 | 320x86x48TK | SW/BB/BC |
Specifcation:
Length: 4300mm
Size Width(mm) x Pitch(mm) x Links: 320x86BBx50

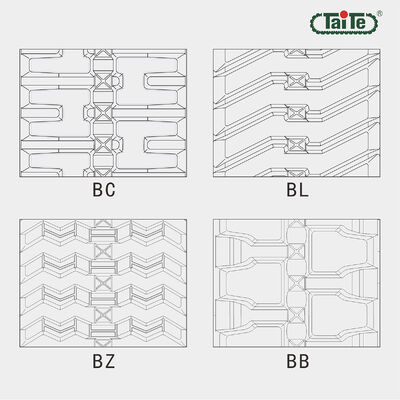

Lug pattern:BB
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |

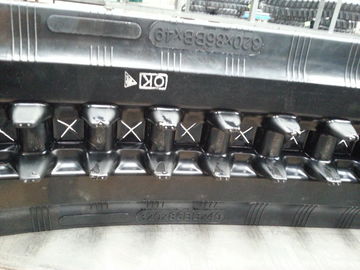

| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) |
Inner guide width(A) |
Outer guide |
Inner width height (C) |
Outer width height (D) |
Track thickness (E) |

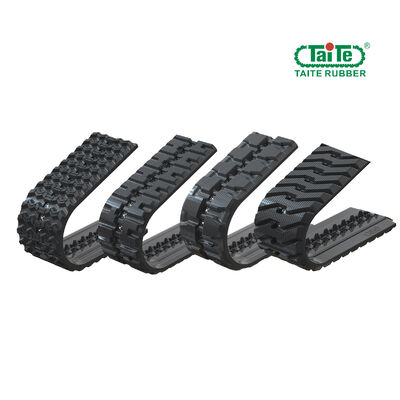

Lug pattern |
Guide type |
Max machine weight (kg) |
Remarks |
| 180x72 | 23 | 64 | 29 | 26.5 | 67 | E/F | B | 1000 | |
| 180x72K | 23 | 64 | 29 | 26.5 | 67 | F | C | 1200 | |
| 230x72 | 24 | 73 | 29 | 27 | 70 | E/F/I | B | 1400 | |
| 230x72K | 48 | 96 | 45 | 34 | 112 | F | C | 1700 | |
| 265x72 | 23 | 78 | 30 | 26 | 72.5 | F | B | 2500 | |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
