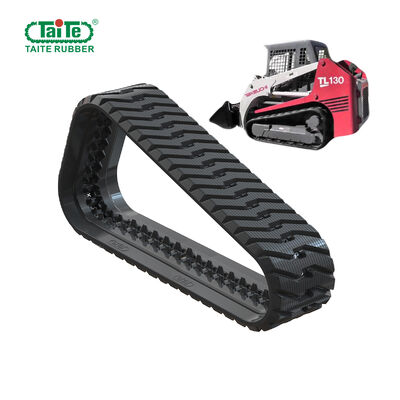

Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type

Certification
China JIAXING TAITE RUBBER CO.,LTD certification
China JIAXING TAITE RUBBER CO.,LTD certification
I'm Online Chat Now

Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type

Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type
Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type

Large Image :  Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type

Product Details:
Place of Origin: CHINA
Brand Name: TAITE
Certification: ISO9001:2015
Model Number: 320x86TKx52
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: PALLET OR NUDE
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 2000 pcs per month

Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type

Description
Size Width(mm) X Pitch(mm) X Links: 320x86TKx52 Material: Rubber, Steel Cord, Metal Core
Colour: Black
High Light:

bobcat rubber tracks

,

rubber tracks for skid steer loaders

,

Wear Resistance Skid Steer Tracks

Product description

Wear-resistence CTL Rubber Track 320x86TKx52 for Skid Steer Loader TAKEUCHI TL130,2-type

  • Adapted Model

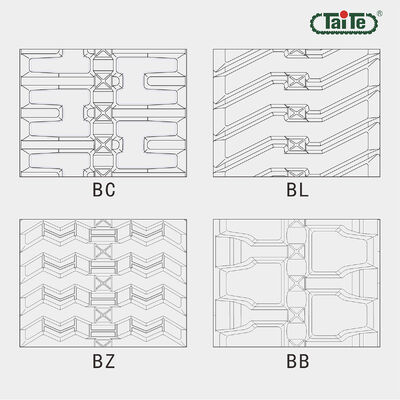

Manufacturer Machine original Track size TAITE-track Tread Profile
Case New Holland TR270 320 86 50 320x86x50 SW/BB/BC/BL
BOBCAT 864H 320 86 52 320x86x52 BB/BC/BL
BOBCAT 864SSL12"C-Profile 320 86 52 320x86x52 BB/BC/BL
BOBCAT MX335 320 86 55 320x86x55 BB/BC/BL
BOBCAT T180C-Profile 320 86 49 320x86x49 BB/BC/BL
BOBCAT T190C-Profile 320 86 49 320x86x49 BB/BC/BL
BOBCAT T200 12"C-Profile 320 86 52 320x86x52 BB/BC/BL
BOBCAT T250 320 86 55 320x86x55 BB/BC/BL
BOBCAT T300 320 86 55 320x86x55 BB/BC/BL
BOBCAT T320 320 86 55 320x86x55 BB/BC/BL
BOBCAT T630 320 86 52 320x86x52 BB/BC/BL
BOBCAT T650 320 86 52 320x86x52 BB/BC/BL
BOBCAT T770 320 86 55 320x86x55 BB/BC/BL
  259 B3 320 86 53 320x86x53B BB/BC/BL
GEHL-TAKEUCHI CTL60-tpye 1° 320 86 48 320x86x48TK SW/BB/BC
GEHL-TAKEUCHI CTL60-tpye 2° 320 86 52 320x86x52TK SW/BB/BC
JCB ROBOT180T 320 86 50 320x86x50 BB/BC/BL
JCB ROBOT190T/1100T 320 86 52 320x86x52 BB/BC/BL
KOMATSU CK20 320 86 52 320x86x52 BB/BC/BL
KOMATSU CK25 type 1° 320 86 52 320x86x52 BB/BC/BL
KOMATSU CK25 type 2° 320 86 56 320x86x56 BB/BC/BL
KOMATSU CK30-1 320 86 56 R320x86x56 BB/BC/BL
KOMATSU CK35-1 320 86 56 R320x86x56 BB/BC/BL
MUSTANG-TAKEUCHI MTL16,1-type 320 86 52 320x86x52TK SW/BB/BC/BL
NEUSON 180T(Skidsteerloader) 320 86 50 320x86x50 BB/BC/BL
NEW HOLLAND C175(Skidsteerloader) 320 86 50 320x86x50 BB/BC/BL
TAKEUCHI TL120 320 86 46 320x86x46TK SW/BB/BC
TAKEUCHI TL126 320 86 48 320x86x48TK SW/BB/BC
TAKEUCHI TL130,1-type 320 86 48 320x86x48TK SW/BB/BC
TAKEUCHI TL130,2-type 320 86 52 320x86x52TK SW/BB/BC
TAKEUCHI TL220 320 86 46 320x86x46TK SW/BB/BC
TAKEUCHI TL230,1-type 320 86 48 320x86x48TK SW/BB/BC
TAKEUCHI TL230,2-type 320 86 52 320x86x52TK SW/BB/BC
TAKEUCHI TL26 320 86 48 320x86x48TK SW/BB/BC
TAKEUCHI TL26S 320 86 48 320x86x48TK SW/BB/BC

  • Specifcation

Length:  4472mm
Size Width(mm) x Pitch(mm) x Links:320x86TKx52

Working terrain: muddy, grassland, sandy area etc.

Material: rubber, steel cord, metal core

Condition: 100% new

Certificate: ISO9001:2015

Place of Origin: China (Mainland)



How to place an order:

  • Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
  • For designing or further discussion, it is better to contact us with Skype / Email / Phone, in case of any delays.

Minimum order quantity:

  • There is no limit for testing orders, i.e. a pair of rubber tracks are acceptable, but for long-term cooperation, we prefer full container basis.

Warranty:

  • 1000 hours using time or 1 year starting from the BL date whichever comes first.

Terms & Delivery:

  • We accept EXW, FOB, CFR, CIF, , etc. You can choose the one which is the most convenient or cost effective for you.

Supply Ability:

  • 2000 Piece/Pieces per Month.



Technical parameters



Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type 0



Track size
(Width*Pitch)
Inner guide width(A)

Outer

guide
width(B)


Inner width
height (C)

Outer
width height (D)

Track
thickness
(E)

Lug
pattern

Guide
type

Max
machine
weight
(kg)

Remarks
180x72 23 64 29 26.5 67 E/F B 1000
180x72K 23 64 29 26.5 67 F C 1200
230x72 24 73 29 27 70 E/F/I B 1400
230x72K 48 96 45 34 112 F C 1700
265x72 23 78 30 26 72.5 F B 2500
320x86TK 38 84 40 30 87.5 F/P C 4000
320x86B 46 96 43 35 105 F/J/U/V B 4000
400x86B 46 96 44 34 110 F B 4000
450x86B 48 96 45 34 110.5 F/J/U/V B 5000
450x100TK 47 102 48 44.5 103.5 F/P C 5000



Products advantage



1). Less damage to the ground surface
2). Low noise
3). Less vibration;

4). Special designed rubber formula

5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace



Packaging & Delivery

  • Packaging Details: Wooden Case or Pallet

Wear Resistance Continuous Replacement Skid Steer Rubber Tracks 320x86TKx52 For TAKEUCHI TL130,2- Type 1


The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks.

3. Rubber tracks permit machines to travel at a higher speed than steel tracks.

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
