Product Details:
|
| Size: | 450X86BLX60 | Material: | Rubber, Steel Core |
|---|---|---|---|
| Characteristic: | High Performance Rubber Formula | Production Place: | CHINA |
| Color: | Black | ||
| High Light: | High Performance Skid Steer Rubber Tracks,Non-disintegration Skid Steer Rubber Tracks,Skid Steer Rubber Tracks 450x86BLx60 |
||

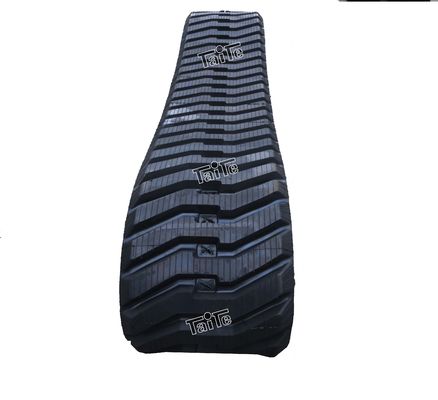

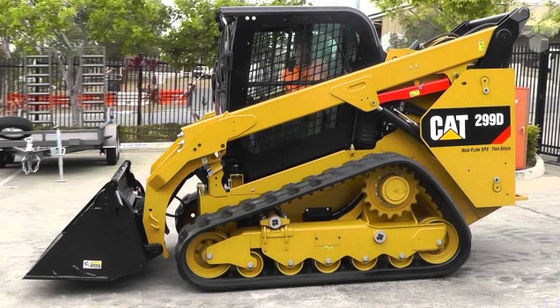

Black rubber track 450X86BLX60 for Skid Steer Loaders 299D
1. Product Description
Black rubber track 450X86BLX60 for Skid Steer Loaders 299D
2. Specification
1 Size : 450X86BLX60
2 Special designed shape to prevent mud comming into the undercarriage
3 Material: rubber, steel core,cable
4 High performance rubber formula adapting high temperature working condition
5 Patented Block Lightning shape profile, good for traction.
3. Technical Parameter
| Track size | Inner guide width(A) | Outer | Remarks | ||||||
| (Width*Pitch) | guide | Inner width | Outer | Track | Lug | Guide | Max | ||
| width(B) | height (C) | width height (D) | thickness | pattern | type | machine | |||
| (E) | weight | ||||||||
| (kg) | |||||||||
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Company Profile:
Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.
