Product Details:
|
| Size Width(mm) X Pitch(mm) X Links: | 450x86BLx52 | Material: | Rubber, Steel Cord, Metal Core |
|---|---|---|---|
| Colour: | Black | Technology: | Endless Steel Cable |
| Max Machine Weight: | 4000kg | Machine Type: | NEUSON |
| High Light: | Continuous CTL Rubber Tracks 450x86BLx52,Skid Steer bobcat rubber tracks,NEUSON 1100T Rubber Tracks |
||

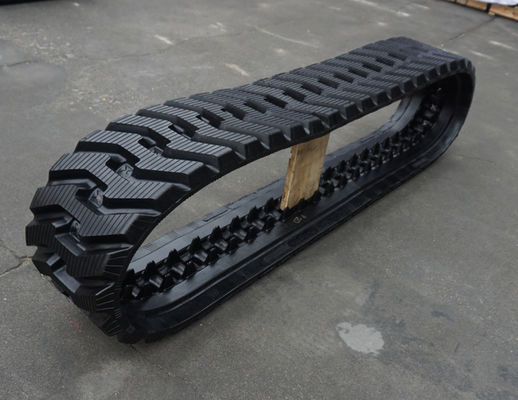

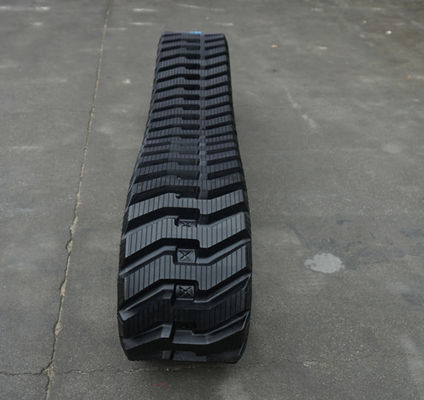

Skid steel loader Track 450x86BLx52 for NEUSON 1100T, both OEM quality and economical one are available
Product description
| Manufacturer | Machine | original Track size | TAITE-track | Tread Profile | ||

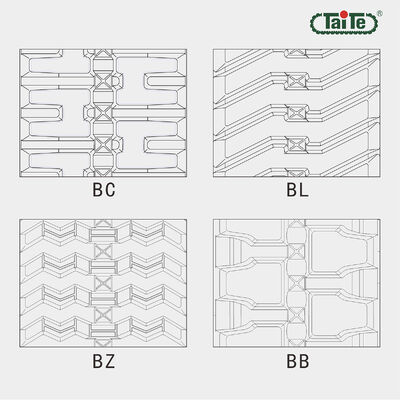

| NEUSON | 1100T(Skidsteerloader) | 450 | 86 | 52 | 450x86x52 | BB/BC/BL |
Length: 4472mm
Size Width(mm) x Pitch(mm) x Links: 450x86x52
Working terrain: muddy, grassland, sandy area etc.
Material: rubber, steel cord, metal core
Condition: 100% new
Certificate: ISO9001:2015
Place of Origin: China (Mainland)
Quality assurance
| Every production process has a special person to test to ensure quality. |
| Have professional engineers to check the quality. |
| All qualified products are marked with “OK” abide by the strict quality inspection standard in our company. |
Technical parameters
| Track size (Width*Pitch) |
Inner guide width(A) |
Outer guide |
Inner width height (C) |
Outer width height (D) |
Track thickness (E) |
Lug pattern |
Guide type |
Max machine weight (kg) |
Remarks |
| 320x86TK | 38 | 84 | 40 | 30 | 87.5 | F/P | C | 4000 | |
| 320x86B | 46 | 96 | 43 | 35 | 105 | F/J/U/V | B | 4000 | |
| 400x86B | 46 | 96 | 44 | 34 | 110 | F | B | 4000 | |
| 450x86B | 48 | 96 | 45 | 34 | 110.5 | F/J/U/V | B | 5000 | |
| 450x100TK | 47 | 102 | 48 | 44.5 | 103.5 | F/P | C | 5000 |
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
Packaging & Delivery
Company Profile
Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.
