Product Details:
|
| Width: | 240mm | Pitch: | 87.63mm |
|---|---|---|---|
| Number Of Links: | 28 | Material: | Kevlar Cords |
| Circumference: | 2453mm | Weight: | 18.8KG/pc |
| High Light: | toro dingo rubber tracks,rc rubber tracks,Toro Dingo TX425 Wide Rubber Tracks |
||

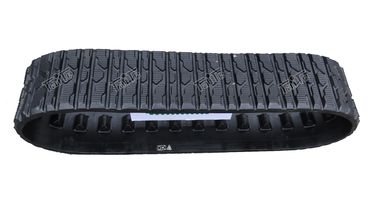

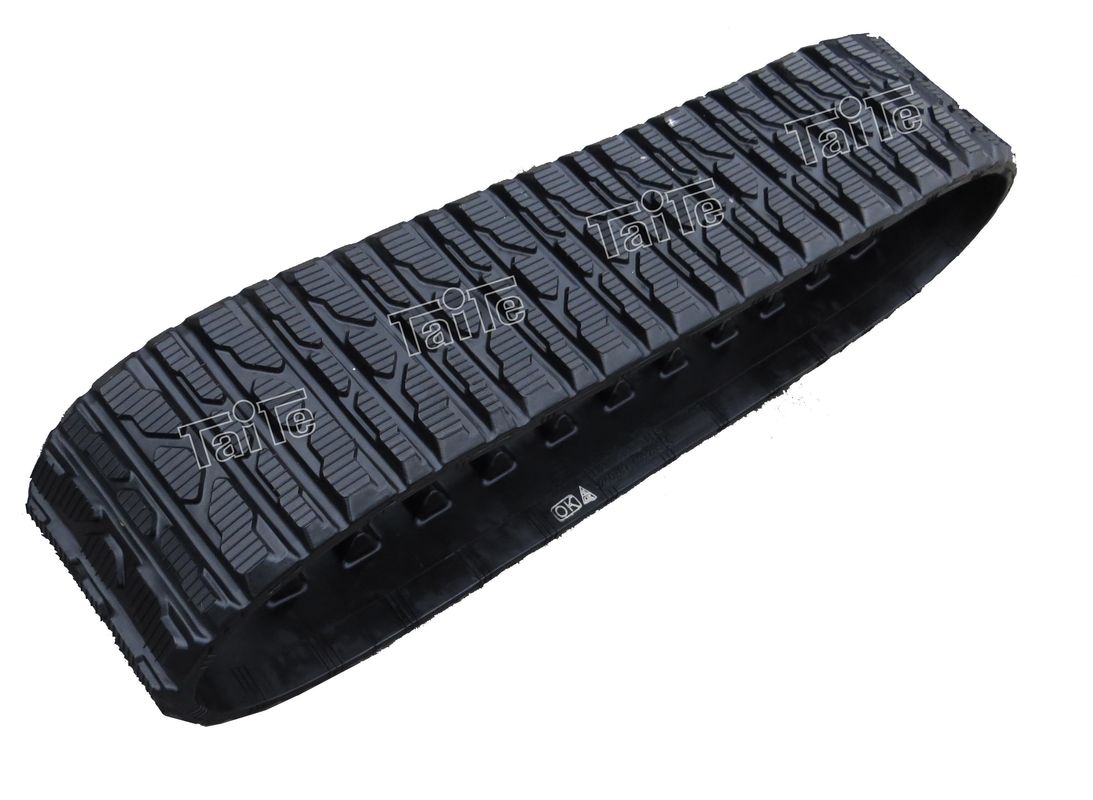

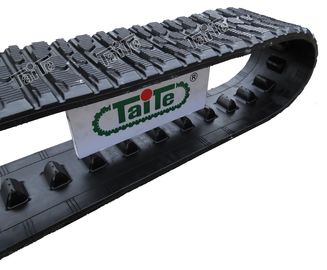

9" (240mm) Rubber Track for Toro Dingo TX425 Wide, TX427 Wide and TX525 Wide
Product Description
High-quality OEM rubber tracks are available for Toro Dingo skidsteers. The models of Toro skid steers that rubber tracks are available for include the Toro TX413, Toro TX420, Toro TX425, Toro TX427 and Toro TX525. There are a few different aspects to look for in aftermarket Toro Dingo rubber tracks including:
The Kevlar cord is important so you won't have premature stretching or separating. Some companies use an aramid or polyester cording which is a cheaper option but not recommended for aggressive applications.
Specification
1 Size Width(mm) x Pitch(mm) x Links: 240x87.63x28
2 Length: 2453mm
3 Reinforced drive lugs
4 Material: rubber, 100% kevlar
5. Friction drive.
6. Higher tread pattern with crescent shape, providing large traction
Application
1) Unique treadbar pattern for better performance in snow, ice, mud, sand and other soft terrain
2) Kevlar reinforced
3) Fiber material reinforcement provide fexibility and durability
4) Sole track design delivers lower vibration and reduce noise
5) Fits original Toro Dingo TX425 Wide, TX427 Wide and TX525 Wide
Techical Parameters
|
Tack Size (WidthxPitch) |
Inner Guide Width (A) | Outer Guide Width (B) | Inner Height (C) | Outer Height(D) | Track Thickness(E) | Lug Pattern | Gude Type | Max Machine Weight (kg) | Remarks |
| 160 | *** | 64 | *** | 31 | 61 | G/N | B | ||
| 240 | *** | 64 | *** | 31 | 61 | G/N | B | ||
| 305 | *** | 101 | *** | 46 | 92 | G/N | B | ||
| 381 | *** | 102 | *** | 46 | 95 | G/N | B | ||
| 457 | *** | 272 | *** | 45 | 94 | G/N | B |
Packaging & Delivery
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What is the minimum order quantity?
There is no limit for testing orders, i.e. a pair of rubber tracks are acceptable, but for long-term cooperation, we prefer full container basis.
3. How about the warranty?
1000 hours using time or 1 year starting from the BL date whichever comes first.
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
