Product Details:
|
| Name:: | Agriculture Rubber Tracks | Length:: | 6706mm |
|---|---|---|---|
| Size:: | TP25"x6"x44 | Material:: | Rubber, Steel Cord |
| Certificate: | ISO9001:2015 | Color: | Black |
| Lenth: | 264" | ||
| High Light: | ag rubber tracks,aftermarket rubber tracks |
||
1. Product Description

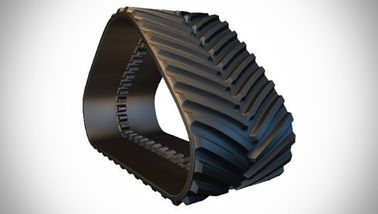

25"x6x44 rubber track for CASE IH RowTrac & New Holland SmartTrax from 370 to 620 horsepower agriculture machine . This spec enlarge the base of the tread pattern and hence keeps durable when providing large traction.
2. Specification
| Size Width(mm) x Pitch(mm) x Links: TP25"x6"x44 |
| Length: 264" |
| Reinforced drive lugs |
|
Material: rubber, steel cord Technology:Uses dual, biased plies of continuous reinforcing fabric (No overlaps or splices) |
3. Application
1) Perfect compatible with CASE IH RowTrac & New Holland SmartTrax
4. Adapted Model
| MODEL | Width(in.) | Pitch(in.) | # of Drive Lug | Tread Profile |
| CASE 9300 | 30 | 6 | 39 | AG/Scraper |
| CASE 9300 | 36 | 6 | 39 | AG |
| CASE STX Quadrac 375 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 380 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 440 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 450 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 480 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 485 | 30/36 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 500 | 30/36 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 530 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 535 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 600 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 700-900 | 36 | 6 | 42 | AG |
| CASE Rowtrac/SmartTrax | 18 | 6 | 44 | AG |
| CASE Rowtrac/SmartTrax | 25 | 6 | 44 | AG |
| Quantity(Piece) | 1 - 20 | >20 |
| Est. Time(day) | 7 | 15-30 |
6. Technical Parameters
7. Warranty:
| 1 Warranty period: 1.5 year(18 months) or 1200 working hours,whichever comes first | |||||
| 2 Peirod of Gurantee valid date: Counting from the shipping date of TAITE company | |||||
| 3 Following situations are not warrantable | |||||
| - Any damage caused during installation process | |||||
| - Abnormal wear or tear | |||||
| - Renovated or repaired tracks | |||||
| - Drive lugs damaged by misalignment or excessive load on one side. | |||||
| - Damage caused by abuse,misuse,accident,wrong dimension and use beyond the track design. | |||||
| - Damage caused by poor machinery condition,mechinery adjustment or incorrect maintanence for chassis | |||||
| - Damage caused by using in inappropriate environment condition. | |||||
| - Small apparent defect and other surface damage may has a certain effect on track appearance,but will not lead to track failure or reduce the using life apparently,such as exposure of reinforced fabric caused by normal wear,small cracks on surface rubber, small bending cracks on drive lugs etc. | |||||
| - Incorrect use or installation judged by TAITE company | |||||
| Payable cost rate table for user | |||||
| TAITE Shipping date | 0-8 months | 9-12 months | 13-15 months | 16-18 months | More than 18 months |
| Or customer using time | 0-300 months | 301-600 hours | 601-900 hours | 901-1200 hours | More than 1200 hours |
| Payable rate for user | 0% | 30% | 50% | 80% | 100% |
| 4 Track replaced due to a defect in materials and workmanship during the original track warranty period,then the replacement track warranty period should be as follows: |
|||||
| -In case the paid cost for user is less than or equal to 50%,the replacement track warranty period is limited to the remainder of the original track warranty period. |
|||||
| - In case the paid cost for user is more than 50%,then the replacement track will carry a full new track warranty. | |||||
8. About Us
Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.
