Home ProductsRubber Excavator Tracks

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration

Certification
China JIAXING TAITE RUBBER CO.,LTD certification
China JIAXING TAITE RUBBER CO.,LTD certification
I'm Online Chat Now

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration
High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration

Large Image :  High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration

Product Details:
Place of Origin: CHINA
Brand Name: TAITE
Certification: ISO9001:2015
Model Number: T400X72.5WX68
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: Pallet or Nude
Delivery Time: 15 Days
Supply Ability: 3000 pcs/month

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration

Description
Name: Rubber Excavator Tracks Size: 400X72.5X68
Length: 4930 Material: Rubber, Steel Cord
Color:: Black Certificate: ISO9001:2015
High Light:

rubber crawler tracks

,

undercarriage rubber tracks

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration



1. Product


Excavator rubber track T400X72.5WX68 for Excavator VOLVO EC45, VOLVO EC45 PRO.



2. Technological Parameters:


High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration 0

ck Size

(WidthxPitch)

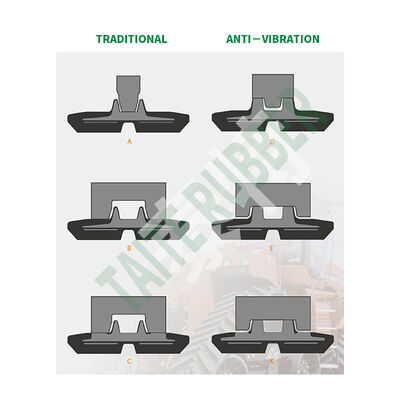

Inner Guide Width (A) Outer Guide Width (B) Inner Height (C) Outer Height(D) Track Thickness(E) Lug Pattern Gude Type Max Machine Weight (kg) Remarks
180x72 23 64 29 26.5 59 B A 1000
180x72K 23 65.5 29 27 65 B C 1200 AVT
190x72 23 66 28.5 26 67 B A 1300
200x72 23 66 29 26 64 B A 1300
200x72K 23 65.5 29 27 65 B C 1400 AVT
230x72 24 74 29 27 70 B/I A 1600
230x72K 23 71 29 28 70 B C 1800 AVT
230x48 25 68.5 21.5 24 68 A D 2100 AVT
230x48K 25 64 19 19.6 61 A K 2100 AVT
230x96 25 68 21.5 23 68 A D 2100
250x48.5Y 27 65 20 18.5 74 K K 2500 AVT
250x52.5 30 79 23.5 22 75 A D 2500 AVT
250x72 23 78 30 27 71 B A 2000
250x72K 23 71 29 28 70 B C 2100 AVT
300x52.5N 29 80 24 20 74 A D 3500 AVT
300x52.5W 39 92 23 21 76 A D 3500 AVT
300x53K 31 85 24 21.5 76 A K 4000 AVT
300x55 28 82 24 25.5 83 A D 4000 AVT
300x109 36 93 25 27 87 A D 4000
320x52.5N 29 80 24 19 74 A D 4000 AVT
350x52.5W 39 92 23 21 76 A D 4500 AVT
350x54.5K 40 93 23.5 21.5 85 A K 4500 AVT
400x72.5N 36.5 95 26 24.5 90 A E 5500 AVT
400x72.5W 49 106 24 22.5 89 A D/E 6000 AVT
400x72.5K 47 107 23.5 22 87 A K 6000 AVT
450x71 40 112 30 25 100 A D/E 8000 AVT
450x76 49 118 28.5 30 106 A D/E 8000 AVT
450x81N 42 110 29.5 28 100 A D/E 8000 AVT
450X81W 53.5 136 29 33 106 A D/E 8000 AVT
450x83.5K 41 110 23 26 105 A K 8000 AVT
450x92 61 152 31.5 34.5 129 A D/E 12000 AVT

3. Product Description



  • Both continuous and overlapping technique for excavator rubber tracks

  • Both Conventional type or interchangeable type

  • More than 20 tread patterns for your selection

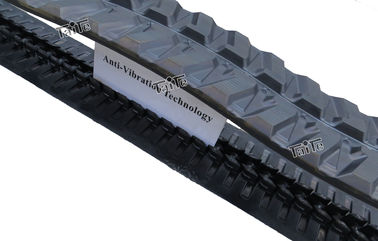

  • Advantage: We have our patented “AVT”(anti-vibration) design by an independent acoustic engineer in 2007, and after tests run on 3-5 tons excavators using both soft and hard surface and the average result was an amazing 75% less vibration than ordinary tracks without “AVT” design.

  • Machine model: excavator undercarriage parts rubber track.

  • Working terrain: Construction site

  • Supply ability: 10000pieces/month

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration 1





4. Application


  1. Perfect compatible with Case CX20B - CX25, Hitachi EX20U-EX22U and ZX22U
  2.  Also suitable for machines of other brands with similar undercarriage system.


5. Adapted Model


Manufacturer Machine type orig. Track     TAITE-Track Alternative Remark
PEL JOB EB 450 400 72.5 68 400x72,5x68(B)   Inner flange track roller
PEL JOB EB 450 XT 400 72.5 68 400x72,5x68(B)   Inner flange track roller
VOLVO EC 45 400 72.5 68 400x72,5x68(B)
VOLVO EC 45 PRO 400 72.5 68 400x72,5x68(B)





6. Advantages


Taite’s tracks are designed to combat the harshest conditions and improve the efficiency of earthmoving work. Our products recognise the importance of productivity. This is why our highly experienced expert technical team is committed to supplying the correct rubber track fitting, to ensure maximum wear-life and minimal down-time.



The powerful traction of Taite’s excavator rubber tracks drive this excavator over rough terrain. Earthmoving, demolition, construction and land scaping applications are all handled with ease. Moreover, our patented Anti-Vibration technology greatly reduces the vibration and therefore prolongs the machine service life and improve the driver’s comfort.



7. Packing & Delivery



  • Pallet or Wooden Case
  • Lead Time : 15-30 days

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration 2

High Grade Volvo Rubber Tracks , Volvo Ec45 Pro Custom Rubber Tracks Less Vibration 3



8. About Us



Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.





9. Warranty:


  • Guarantee 1000 hours or one year starting from the B/L date, whichever comes first.
