Anti-Vibration Rubber Track T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type

Certification
China JIAXING TAITE RUBBER CO.,LTD certification
China JIAXING TAITE RUBBER CO.,LTD certification
I'm Online Chat Now

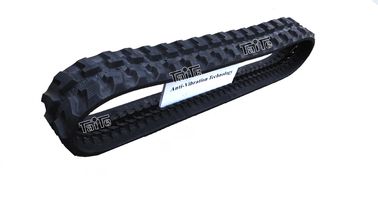

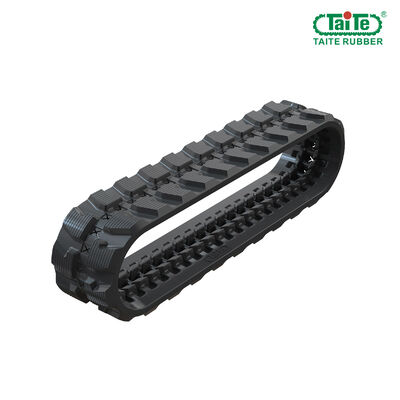

Anti-Vibration Rubber Track T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type

Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type
Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type

Large Image :  Anti-Vibration Rubber Track T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type

Product Details:
Place of Origin: CHINA
Brand Name: TAITE
Certification: ISO9001:2015
Model Number: T250X52.5NX74
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: Pallet or Nude
Delivery Time: 30 Days
Supply Ability: 3000 pcs/month

Anti-Vibration Rubber Track T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type

Description
Name: Rubber Excavator Tracks Size: T250X52.5NX74
Length: 3885mm Material: Rubber, Steel Cord
Color:: Black Certificate: ISO9001:2015
High Light:

undercarriage rubber tracks

,

replacement rubber tracks for excavators



1. Product


Excavator rubber track T250X52.5NX74  for AIRMANN AX 22, 1/2-type,HITACHI EX 15, 1-type



2. Technological Parameters:


Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type 0

Track Size

(WidthxPitch)

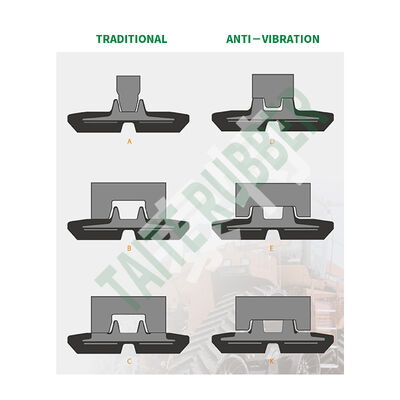

Inner Guide Width (A) Outer Guide Width (B) Inner Height (C) Outer Height(D) Track Thickness(E) Lug Pattern Gude Type Max Machine Weight (kg) Remarks
180x72 23 64 29 26.5 59 B A 1000
180x72K 23 65.5 29 27 65 B C 1200 AVT
190x72 23 66 28.5 26 67 B A 1300
200x72 23 66 29 26 64 B A 1300
200x72K 23 65.5 29 27 65 B C 1400 AVT
230x72 24 74 29 27 70 B/I A 1600
230x72K 23 71 29 28 70 B C 1800 AVT
230x48 25 68.5 21.5 24 68 A D 2100 AVT
230x48K 25 64 19 19.6 61 A K 2100 AVT
230x96 25 68 21.5 23 68 A D 2100
250x48.5Y 27 65 20 18.5 74 K K 2500 AVT
250x52.5 30 79 23.5 22 75 A D 2500 AVT
250x72 23 78 30 27 71 B A 2000
250x72K 23 71 29 28 70 B C 2100 AVT
300x52.5N 29 80 24 20 74 A D 3500 AVT
300x52.5W 39 92 23 21 76 A D 3500 AVT
300x53K 31 85 24 21.5 76 A K 4000 AVT
300x55 28 82 24 25.5 83 A D 4000 AVT
300x109 36 93 25 27 87 A D 4000
320x52.5N 29 80 24 19 74 A D 4000 AVT
350x52.5W 39 92 23 21 76 A D 4500 AVT
350x54.5K 40 93 23.5 21.5 85 A K 4500 AVT
400x72.5N 36.5 95 26 24.5 90 A E 5500 AVT
400x72.5W 49 106 24 22.5 89 A D/E 6000 AVT
400x72.5K 47 107 23.5 22 87 A K 6000 AVT
450x71 40 112 30 25 100 A D/E 8000 AVT
450x76 49 118 28.5 30 106 A D/E 8000 AVT
450x81N 42 110 29.5 28 100 A D/E 8000 AVT
450X81W 53.5 136 29 33 106 A D/E 8000 AVT
450x83.5K 41 110 23 26 105 A K 8000 AVT
450x92 61 152 31.5 34.5 129 A D/E 12000 AVT





3. Product Description



  • Both continuous and overlapping technique for excavator rubber tracks

  • Both Conventional type or interchangeable type

  • More than 20 tread patterns for your selection

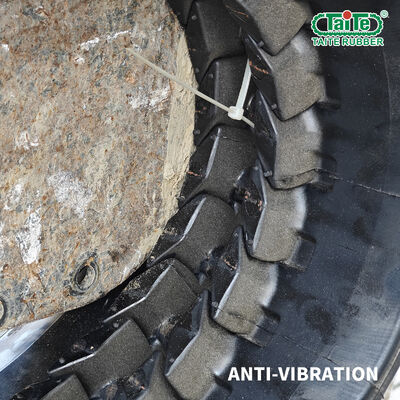

  • Advantage: We have our patented “AVT”(anti-vibration) design by an independent acoustic engineer in 2007, and after tests run on 3-5 tons excavators using both soft and hard surface and the average result was an amazing 75% less vibration than ordinary tracks without “AVT” design.

  • Machine model: excavator undercarriage parts rubber track.

  • Working terrain: Construction site

  • Supply ability: 10000pieces/month

Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type 1





4. Application


  1. Perfect compatible with HX 64B.
  2.  Also suitable for machines of other brands with similar undercarriage system.
  3.  Good for rigid construction site.


5. Adapted Model


Manufacturer Machine type orig. Track     TAITE-Track Alternative Remark
AIRMANN AX 18-2 250 107,5 36 250x52,5x74
AIRMANN AX 22, 1-type 250 107,5 36 250x52,5x74
AIRMANN AX 22, 2-type 250 52.5 73 250x52,5x74
AIRMANN AX 22-1 250 52.5 73 250x52,5x74
AIRMANN AX 22-2/CGL 250 52.5 73 250x52,5x74
AIRMANN AX 24 250 52.5 73 250x52,5x74
FIAT-HITACHI FH 22.2 250 52.5 73 250x52,5x74
FIAT-HITACHI FH 22.2 Plus 250 52.5 73 250x52,5x74
FIAT-HITACHI FH 30.2 plus, 1-type 250 52.5 73 250x52,5x74
HITACHI EX 15, 1-type 250 52,5 73 250x52,5x74
HITACHI EX 18-2 250 52.5 73 250x52,5x74
HITACHI EX 21 250 52.5 73 250x52,5x74
HITACHI EX 22, 1-type 250 107,5 36 250x52,5x74   Inner flange track roller
HITACHI EX 22, 2-type 250 52.5 73 250x52,5x74   Inner flange track roller
HITACHI EX 22-1 250 52.5 73 250x52,5x74   Inner flange track roller
HITACHI EX 22-2 250 52.5 73 250x52,5x74   Inner flange track roller
HITACHI FH 22 250 52.5 73 250x52,5x74
HITACHI FH 22.2 250 52.5 73 250x52,5x74
HITACHI ZX 25 250 52.5 73 250x52,5x74   Inner flange track roller
KOMATSU MM20CR 260 52.5 74 250x52,5x74



6. Advantages


  1. Less damage to the ground surface
  2. Patented Anti-Vibration tech, low noise
  3.  Patented Anti-Vibration tech, less vibration;
  4. Patented Anti-Vibration tech, machine protection;
  5. Low ground contack specific pressure
  6. High tractive force
  7. Light weight comparing with iron track.
  8.  Easy to replace

7. Packing & Delivery



  • Pallet or Wooden Case
  • Lead Time : 15-30 days

Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type 2

Anti-Vibration Rubber Track  T250X52.5NX74 for Excavator AIRMANN AX 22, 1/2-type 3



8. About Us



We produce a variety of rubber tracks and rubber pads that can be widely applied in construction machinery, agricultural machinery and other specialized vehicles. Most of our products are sold to Europe, America, Australia etc. In more than 10 years development, Taite has established long-term and stable cooperative relationship with some famous OEM customers, and widely won recognition and praise from them.



9. Warranty:


  • Guarantee 1000 hours or one year starting from the B/L date, whichever comes first.
