Product Details:
|
| Name:: | Engineering Rubber Tracks | Length:: | 6400.8mm |
|---|---|---|---|
| Size:: | TP36"x6"x42EN | Material:: | Rubber, Steel Cord |
| Certificate: | ISO9001:2015 | Color: | Black |
| Lenth: | 252" | ||
| High Light: | Agricultural Rubber Tracks 36 " X 6 " X 42,Case STX Quadrac Agricultural Rubber Tracks,Customized Tread Pattern Agricultural Rubber Tracks |
||
1. Product Description

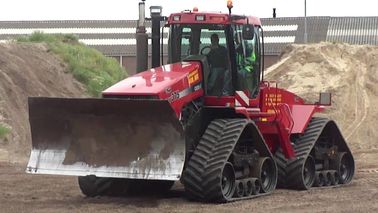

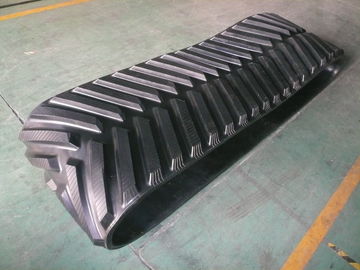

Case STX Quadrac Rubber Track 36"x6"x42 with Customized Tread Pattern for Scraper Purpose Adapted to Tough Ground
36"x6x42 rubber track for CASE STX Quadrac when the machine is applied as a scraper. This spec enlarge the base of the tread pattern and hence keeps durable when providing large traction.
2. Specification
| Size Width(mm) x Pitch(mm) x Links: 36"x6"x42 |
| Length: 6400.8mm 252" |
| Reinforced drive lugs |
| Material: rubber, steel cord |
3. Application
1) Perfect compatible with CASE STX Quadtrac 750-900
2) Special designed tread pattern which perfectly adapts to scraper purpose.
3) Enhanced inner structure
4. Adapted Model
| MODEL | Width(in.) | Pitch(in.) | # of Drive Lug | Tread Profile |
| CASE 9300 | 30 | 6 | 39 | AG/Scraper |
| CASE 9300 | 36 | 6 | 39 | AG |
| CASE STX Quadrac 375 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 380 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 440 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 450 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 480 | 30 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 485 | 30/36 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 500 | 30/36 | 6 | 42 | AG/Scraper |
| CASE STX Quadrac 530 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 535 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 600 | 36 | 6 | 42 | AG |
| CASE STX Quadrac 700-900 | 36 | 6 | 42 | AG |
| CASE Rowtrac/SmartTrax | 18 | 6 | 44 | AG |
| CASE Rowtrac/SmartTrax | 25 | 6 | 44 | AG |
Selling Units: Single item5. Packaging & Delivery
| Quantity(Piece) | 1 - 20 | >20 |
| Est. Time(day) | 7 | 15-30 |
6. Technical Parameters
| 1 Warranty period: 1.5 year(18 months) or 1200 working hours,whichever comes first | |||||
| 2 Peirod of Gurantee valid date: Counting from the shipping date of TAITE company | |||||
| 3 Following situations are not warrantable | |||||
| - Any damage caused during installation process | |||||
| - Abnormal wear or tear | |||||
| - Renovated or repaired tracks | |||||
| - Drive lugs damaged by misalignment or excessive load on one side. | |||||
| - Damage caused by abuse,misuse,accident,wrong dimension and use beyond the track design. | |||||
| - Damage caused by poor machinery condition,mechinery adjustment or incorrect maintanence for chassis | |||||
| - Damage caused by using in inappropriate environment condition. | |||||
| - Small apparent defect and other surface damage may has a certain effect on track appearance,but will not lead to track failure or reduce the using life apparently,such as exposure of reinforced fabric caused by normal wear,small cracks on surface rubber, small bending cracks on drive lugs etc. | |||||
| - Incorrect use or installation judged by TAITE company | |||||
| Payable cost rate table for user | |||||
| TAITE Shipping date | 0-8 months | 9-12 months | 13-15 months | 16-18 months | More than 18 months |
| Or customer using time | 0-300 months | 301-600 hours | 601-900 hours | 901-1200 hours | More than 1200 hours |
| Payable rate for user | 0% | 30% | 50% | 80% | 100% |
| 4 Track replaced due to a defect in materials and workmanship during the original track warranty period,then the replacement track warranty period should be as follows: |
|||||
| -In case the paid cost for user is less than or equal to 50%,the replacement track warranty period is limited to the remainder of the original track warranty period. |
|||||
| - In case the paid cost for user is more than 50%,then the replacement track will carry a full new track warranty. | |||||
8.
Products advantage
1). Less damage to the ground surface
2). Low noise
3). Less vibration;
4). Special designed rubber formula
5). More durable, support high speed application
6). Low ground contact specific pressure
7). High tractive force
8). Light weight comparing with iron track.
9). Easy to replace
10)Endless steel cable
11)Maintains excellent traction throughout tread life.
