Product Details:
|
| Name:: | Engineering Rubber Tracks | Length:: | 6400.8mm |
|---|---|---|---|
| Size:: | 762x152.4x42 | Material:: | Rubber, Steel Cord |
| Certificate: | ISO9001:2015 | Color: | Black |
| High Light: | tractor rubber tracks,kubota rubber tracks,case stx quadrac rubber track |
||

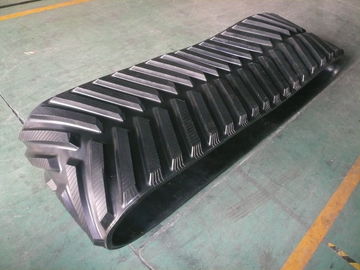

Case STX Quadrac Rubber Track 30"x6"x42 with Customized Tread Pattern for Scraper Purpose
1. Product Description
30"x6x42 rubber track for CASE STX Quadrac when the machine is applied as a scraper. This spec enlarge the base of the tread pattern and hence keeps durable when providing large traction.
2. Specification
1 Size Width(mm) x Pitch(mm) x Links: 762x152.4x42
2 Length: 6400.8mm
3 Reinforced drive lugs
4 Material: rubber, steel cord
3. Application

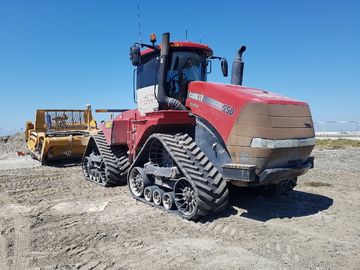

1) Perfect compatible with CASE IH STX Quadtrac
2) Also suitable for machines of other brands with similar undercarriage system.
3) Special designed tread pattern which perfectly adapts to scraper purpose.
4) Enhanced inner structure
4. Adapted Model
| Manufacturer | Machine | TAITE-track |
| CASE IH | STX Quadrac 375 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 380 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 440 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 450 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 480 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 500 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 535 | TP762x152.4x42EN |
| CASE IH | STX Quadrac 600 | TP762x152.4x42EN |
| Quantity(Piece) | 1 - 20 | >20 |
| Est. Time(day) | 7 | 15-30 |
6. Technical Parameters
|
In general, our warranty time is 12 months or 1000 working hours.
|
| 1. If use the products not more than 8 months, we will compensate all the losses of clients when the quality problem happens; |
| 2. If use the products for 8-10 months, we will compensate 50% ofthe losses when the quality problem happens; |
|
3. If use the products for 10-12 months, we will compensate 25% of the losses when the |
|
4.Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine. |
8. About Us
Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.
