Paver Rubber Tracks
Created with Pixso.

Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration

Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration

Brand Name: TAITE
Model Number: 14"x6"x55
MOQ: 4
Payment Terms: L/C, T/T
Supply Ability: 100 PCS/MONTH
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Paver Rubber Tracks
Size:
14"x6"x55
Length:
330"
Material:
Rubber, Steel Cord
Color:
Black
Characteristic:
High Ground Contact Ratio
Packaging Details:
PALLET/FCL
Supply Ability:
100 PCS/MONTH
Highlight:

rubber tracks for skid loader

,

rubber tracks for mini excavator

,

Non Disintegration Paver Rubber Tracks

Product Description

High Traction and Durable Rubber Track 14"x6"x55 for Roadtec Asphalt Pavers RP-175

1. Product Description

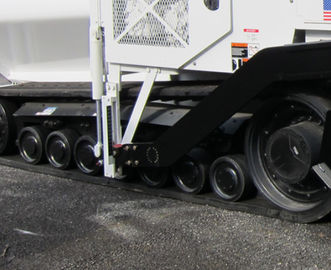

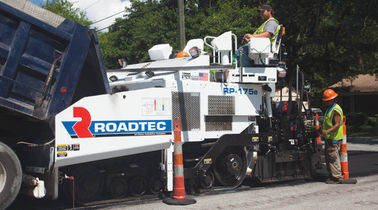

Rubber track for Roadtec RP-175

 Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration 0
2. Specification

Size Width(mm) x Pitch(mm) x Links: 14"x6"x55
Length: 330"
Material: Rubber, Steel Cord

Application:

Perfect compatible with Roadtec RP-175
Also suitable for machines of other brands with similar undercarriage system.

Adapted Model:

ManufacturerMachineTAITE-track
RoadtecRP-17514"x6"x55RPL



3.  Section View

Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration 1



Track WidthLug Pattern Guide TypeMachine TypeRemarks
14'' (356mm)**B Cedar Rapid CR-362L
14'' (356mm)**BRoadtec RP-175
14'' (356mm)**BCAT AP-555E
14'' (356mm)**BB-Knox PF4410
16'' (406mm)**BRoadtec RP-185
16'' (406mm)**BCAT AP-655E
18'' (457mm)**BCedar Rapid CR-462
18'' (457mm)**BDynapac F1000T
18.5''(470mm)**BRoadtec RP-195
18.5''(470mm)**BCAT AP-1055BB
19''(483mm)**BCedar Rapid CR-562
19''(483mm)**BB-Knox PF5510


4. Packing & Delivery


P    Packaging Details: Wooden Case or Pallet

P

L     Lead Time : 15-30 days


Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration 2

Custom Flexible Paver Rubber Tracks Low Ground Pressure Non Disintegration 3
55 Features

Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.
Less noise and less vibration, prolong the machine service life.
High Traction Force
Special designed formula suitable for high temperature on asphalt.
Special designed tread pattern to maximize the gound contact surface and reduce the intensity of pressure to the ground.



6. FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What is the minimum order quantity?
There is no limit for testing orders, i.e. a pair of rubber tracks are acceptable, but for long-term cooperation, we prefer full container basis.

3. How about the warranty?
1000 hours using time or 1 year starting from the BL date whichever comes first.

4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
