BOBCAT X123 IHI 20JX 1-type AVT Rubber Track 250mm T250X72X47

Name: BOBCAT X123 IHI 20JX 1-type AVT Rubber Track 250mm T250X72X47
Brand: JIAXING TAITE RUBBER CO.,LTD
SKU: T250X72X47
Availability: InStock

Brand Name:	TAITE
Model Number:	T250X72X47
MOQ:	20
Supply Ability:	3000 pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001:2015

Name:

Rubber Excavator Tracks

Size:

250X72X47

Length:

3384 Mm

Material:

Rubber, Steel Cord

Color::

Black

Certificate:

ISO9001:2015

Packaging Details:

Pallet or Nude

Supply Ability:

3000 pcs/month

Highlight:

BOBCAT X123 AVT Rubber Track

IHI 20JX 1-type AVT Rubber Track

T250X72X47 AVT Rubber Track

Product Description

1. Product Description

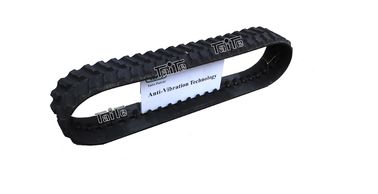

BOBCAT X123 IHI 20JX 1-type AVT Rubber Track 250mm T250X72X47 0

Perfect compatible with BOBCAT X123 series;
Also suitable for machines of other brands with similar undercarriage system.

2. Adapted Model

Manufacturer	Machine type	orig. Track			TAITE-Track	Alternative	Remark
BOBCAT	X 123	250	72	47	250x72x47	230x72x47	Inner flange track roller
BONNE	B23RP	250	72	47	250x72x47	230x72x47
GEHLMAX	A 17 SA	250	82	47	250x72x47	230x72x47
IHI	20JX, 1-type	250	72	47	250x72x47
PEL JOB	EB 11, 2-type	250	72	47	250x72x47	230x72x47
PEL JOB	EB 16	250	72	47	250x72x47	230x72x47	Inner flange track roller
PEL JOB	EB 16.4, 2-type	250	72	47	250x72x47	230x72x47	Inner flange track roller
PEL JOB	EB 16.5	250	72	47	250x72x47	230x72x47	Inner flange track roller
YGRY	SA 170	250	72	47	250x72x47	230x72x47

3. Technological Parameters:

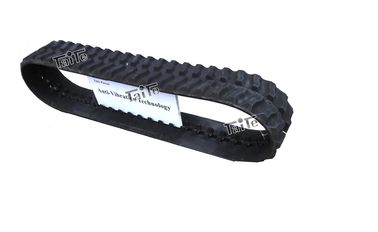

BOBCAT X123 IHI 20JX 1-type AVT Rubber Track 250mm T250X72X47 1

Tack Size (WidthxPitch)	Inner Guide Width (A)	Outer Guide Width (B)	Inner Height (C)	Outer Height(D)	Track Thickness(E)	Lug Pattern	Gude Type	Max Machine Weight (kg)	Remarks
180x72	23	64	29	26.5	59	B	A	1000
180x72K	23	65.5	29	27	65	B	C	1200	AVT
190x72	23	66	28.5	26	67	B	A	1300
200x72	23	66	29	26	64	B	A	1300
200x72K	23	65.5	29	27	65	B	C	1400	AVT
230x72	24	74	29	27	70	B/I	A	1600
230x72K	23	71	29	28	70	B	C	1800	AVT
230x48	25	68.5	21.5	24	68	A	D	2100	AVT
230x48K	25	64	19	19.6	61	A	K	2100	AVT
230x96	25	68	21.5	23	68	A	D	2100
250x48.5Y	27	65	20	18.5	74	K	K	2500	AVT
250x52.5	30	79	23.5	22	75	A	D	2500	AVT
250x72	23	78	30	27	71	B	A	2000
250x72K	23	71	29	28	70	B	C	2100	AVT
300x52.5N	29	80	24	20	74	A	D	3500	AVT
300x52.5W	39	92	23	21	76	A	D	3500	AVT
300x53K	31	85	24	21.5	76	A	K	4000	AVT
300x55	28	82	24	25.5	83	A	D	4000	AVT
300x109	36	93	25	27	87	A	D	4000
320x52.5N	29	80	24	19	74	A	D	4000	AVT
350x52.5W	39	92	23	21	76	A	D	4500	AVT
350x54.5K	40	93	23.5	21.5	85	A	K	4500	AVT
400x72.5N	36.5	95	26	24.5	90	A	E	5500	AVT
400x72.5W	49	106	24	22.5	89	A	D/E	6000	AVT
400x72.5K	47	107	23.5	22	87	A	K	6000	AVT
450x71	40	112	30	25	100	A	D/E	8000	AVT
450x76	49	118	28.5	30	106	A	D/E	8000	AVT
450x81N	42	110	29.5	28	100	A	D/E	8000	AVT
450X81W	53.5	136	29	33	106	A	D/E	8000	AVT
450x83.5K	41	110	23	26	105	A	K	8000	AVT
450x92	61	152	31.5	34.5	129	A	D/E	12000	AVT
