Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H

Certification
China JIAXING TAITE RUBBER CO.,LTD certification
China JIAXING TAITE RUBBER CO.,LTD certification
I'm Online Chat Now

Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H

Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H
Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H

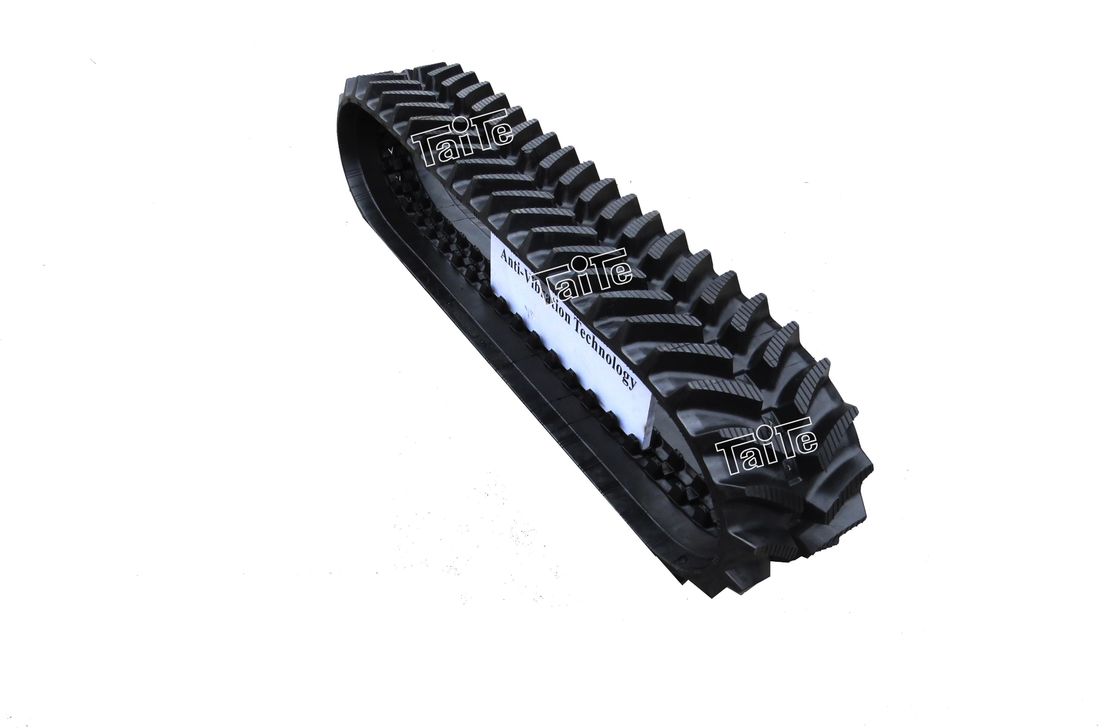

Large Image :  Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H

Product Details:
Place of Origin: CHINA
Brand Name: TAITE
Certification: ISO9001:2015
Model Number: T280X72LHX55
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: Pallet or Nude
Delivery Time: 15 Days
Supply Ability: 3000 pcs/month

Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H

Description
Name: Rubber Excavator Tracks Size: 280X72LHX55
Length: 3960 Mm Material: Rubber, Steel Cord
Color:: Black Certificate: ISO9001:2015
High Light:

Higher Tread Pattern Rubber Track

,

Rubber Track T280X72LHX55

,

YAMAGUCHI WB 16H Rubber Track

1. Product Description


Application:

  • ​Perfect compatible with YAMAGUCHI WB 16H series;
  • Also suitable for machines of other brands with similar undercarriage system.

Feathers:

  • Both continuous and overlapping technique for excavator rubber tracks
  • Both Conventional type or interchangeable type

Machine Model:

  • Excavator undercarriage parts rubber track

Working Terrain:

  • Construction site

Supply Ability:

  • 10000 pieces/month

Advantage:

  • Less damage to the ground surface

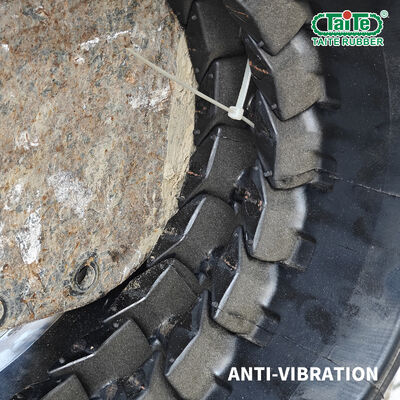

  • Patented Anti-Vibration tech, low noise
  • Patented Anti-Vibration tech, less vibration;
  • Patented Anti-Vibration tech, machine protection;
  • Low ground contack specific pressure
  • High tractive force
  • Light weight comparing with iron track.
  • Easy to replace



2. Technological Parameters:




Higher Tread Pattern Rubber Track T280X72LHX55 For YAMAGUCHI WB 16H 0




Tack Size

(WidthxPitch)

Inner Guide Width (A)   Outer Guide Width (B)  Inner Height (C)  Outer Height(D) Track Thickness(E) Lug Pattern Gude Type Max Machine Weight (kg) Remarks

180x72

23 64 29 26.5 59 B A 1000
180x72K 23 65.5 29 27 65 B C 1200 AVT
190x72 23 66 28.5 26 67 B A 1300
200x72 23 66 29 26 64 B A 1300
200x72K 23 65.5 29 27 65 B C 1400 AVT
230x72 24 74 29 27 70 B/I A 1600
230x72K 23 71 29 28 70 B C 1800 AVT
230x48 25 68.5 21.5 24 68 A D 2100 AVT
230x48K 25 64 19 19.6 61 A K 2100 AVT
230x96 25 68 21.5 23 68 A D 2100
250x48.5Y 27 65 20 18.5 74 K K 2500 AVT
250x52.5 30 79 23.5 22 75 A D 2500 AVT
250x72 23 78 30 27 71 B A 2000
250x72K 23 71 29 28 70 B C 2100 AVT
300x52.5N 29 80 24 20 74 A D 3500 AVT
300x52.5W 39 92 23 21 76 A D 3500 AVT

300x53K

31 85 24 21.5 76 A K 4000 AVT
300x55 28 82 24 25.5 83 A D 4000 AVT
300x109 36 93 25 27 87 A D 4000
320x52.5N 29 80 24 19 74 A D 4000 AVT

350x52.5W

39 92 23 21 76 A D 4500 AVT
350x54.5K 40 93 23.5 21.5 85 A K 4500 AVT
400x72.5N 36.5 95 26 24.5 90 A E 5500 AVT
400x72.5W 49 106 24 22.5 89 A D/E 6000 AVT
400x72.5K 47 107 23.5 22 87 A K 6000 AVT
450x71 40 112 30 25 100 A D/E 8000 AVT
450x76 49 118 28.5 30 106 A D/E 8000 AVT
450x81N 42 110 29.5 28 100 A D/E 8000 AVT
450X81W 53.5 136 29 33 106 A D/E 8000 AVT
450x83.5K 41 110 23 26 105 A K 8000 AVT
450x92 61 152 31.5 34.5 129 A D/E 12000 AVT







3. FAQ


Q1: What are the basic materials do you use?



A1: Natural rubber and synthetic rubber.



Q2: What type of product that you can do?



A2: Special Rubber Track, Agricultural Machinery Rubber Track,Rubber Track and Rubber Pad.



Q3: What's your delivery time?



A3: Around 15-30 days.



Q4: What are your main terms of payment?



A4: T/T, L/C.





4. Warranty:


  • Guarantee 1000 hours or one year starting from the B/L date, whichever comes first.



5. Applicable models:



Manufacturer Machine type orig. Track     TAITE-Track Alternative Remark
YAMAGUCHI WB 16H 280 72 55 280x72x55 250x72x55
