Product Details:
|
| Name: | Rubber Excavator Tracks | Size: | 400X72.5X70 |
|---|---|---|---|
| Length: | 5075 | Material: | Rubber, Steel Cord |
| Color:: | Black | Certificate: | ISO9001:2015 |
| High Light: | Replacement Flexible Vermeer Rubber Tracks,Rubber Digger Tracks Non Disintegration |
||

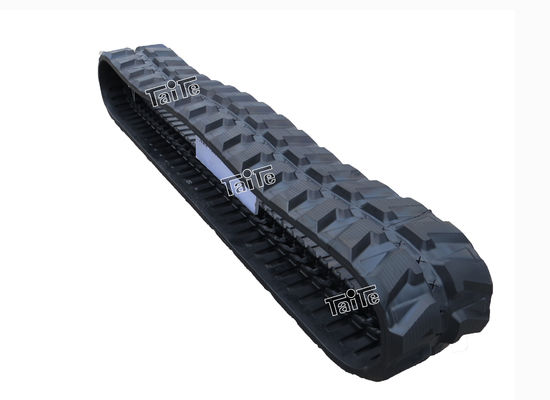

Flexible Vermeer Rubber Tracks , Rubber Digger Tracks Non Disintegration
1. Product
2. Technological Parameters:
|
ck Size (WidthxPitch) |
Inner Guide Width (A) | Outer Guide Width (B) | Inner Height (C) | Outer Height(D) | Track Thickness(E) | Lug Pattern | Gude Type | Max Machine Weight (kg) | Remarks |
| 180x72 | 23 | 64 | 29 | 26.5 | 59 | B | A | 1000 | |
| 180x72K | 23 | 65.5 | 29 | 27 | 65 | B | C | 1200 | AVT |
| 190x72 | 23 | 66 | 28.5 | 26 | 67 | B | A | 1300 | |
| 200x72 | 23 | 66 | 29 | 26 | 64 | B | A | 1300 | |
| 200x72K | 23 | 65.5 | 29 | 27 | 65 | B | C | 1400 | AVT |
| 230x72 | 24 | 74 | 29 | 27 | 70 | B/I | A | 1600 | |
| 230x72K | 23 | 71 | 29 | 28 | 70 | B | C | 1800 | AVT |
| 230x48 | 25 | 68.5 | 21.5 | 24 | 68 | A | D | 2100 | AVT |
| 230x48K | 25 | 64 | 19 | 19.6 | 61 | A | K | 2100 | AVT |
| 230x96 | 25 | 68 | 21.5 | 23 | 68 | A | D | 2100 | |
| 250x48.5Y | 27 | 65 | 20 | 18.5 | 74 | K | K | 2500 | AVT |
| 250x52.5 | 30 | 79 | 23.5 | 22 | 75 | A | D | 2500 | AVT |
| 250x72 | 23 | 78 | 30 | 27 | 71 | B | A | 2000 | |
| 250x72K | 23 | 71 | 29 | 28 | 70 | B | C | 2100 | AVT |
| 300x52.5N | 29 | 80 | 24 | 20 | 74 | A | D | 3500 | AVT |
| 300x52.5W | 39 | 92 | 23 | 21 | 76 | A | D | 3500 | AVT |
| 300x53K | 31 | 85 | 24 | 21.5 | 76 | A | K | 4000 | AVT |
| 300x55 | 28 | 82 | 24 | 25.5 | 83 | A | D | 4000 | AVT |
| 300x109 | 36 | 93 | 25 | 27 | 87 | A | D | 4000 | |
| 320x52.5N | 29 | 80 | 24 | 19 | 74 | A | D | 4000 | AVT |
| 350x52.5W | 39 | 92 | 23 | 21 | 76 | A | D | 4500 | AVT |
| 350x54.5K | 40 | 93 | 23.5 | 21.5 | 85 | A | K | 4500 | AVT |
| 400x72.5N | 36.5 | 95 | 26 | 24.5 | 90 | A | E | 5500 | AVT |
| 400x72.5W | 49 | 106 | 24 | 22.5 | 89 | A | D/E | 6000 | AVT |
| 400x72.5K | 47 | 107 | 23.5 | 22 | 87 | A | K | 6000 | AVT |
| 450x71 | 40 | 112 | 30 | 25 | 100 | A | D/E | 8000 | AVT |
| 450x76 | 49 | 118 | 28.5 | 30 | 106 | A | D/E | 8000 | AVT |
| 450x81N | 42 | 110 | 29.5 | 28 | 100 | A | D/E | 8000 | AVT |
| 450X81W | 53.5 | 136 | 29 | 33 | 106 | A | D/E | 8000 | AVT |
| 450x83.5K | 41 | 110 | 23 | 26 | 105 | A | K | 8000 | AVT |
| 450x92 | 61 | 152 | 31.5 | 34.5 | 129 | A | D/E | 12000 | AVT |
3. Product Description
| 1 | Both continuous and overlapping technique for excavator rubber tracks | ||
| 2 | Both Conventional type or interchangeable type | ||
| 3 | More than 20 tread patterns for your selection | ||

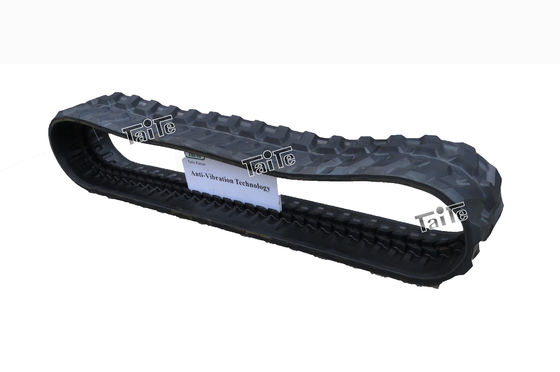

| 4 | Advantage: We have our patented “AVT”(anti-vibration) design by an independent acoustic engineer in 2007, and after tests run on 3-5 tons excavators using both soft and hard surface and the average result was an amazing 75% less vibration than ordinary tracks without “AVT” design. | ||
| 5 | Machine model: excavator undercarriage parts rubber track. | ||
| 6 | Working terrain: Construction site | ||
| 7 | Supply ability: 10000pieces/month | ||
4. Application
5. Adapted Model
| Manufacturer | Machine | original Track size | TAITE-track | ||
| ATLAS | 804-2 | 400 | 72.5 | 70 | T400x72,5x70W |
| ATLAS | CT40N | 400 | 72.5 | 70 | T400x72,5x70W |
| BOBCAT | X335 | 400 | 146 | 35 | T400x72,5x70W |
| ME40 | 400 | 146 | 35 | T400x72,5x70W | |
| ME45 | 400 | 146 | 35 | T400x72,5x70W | |
| MX45 | 400 | 142 | 36 | T400x72,5x70W | |
| MX50 | 400 | 146 | 35 | T400x72,5x70W | |
| EUROTOM | TS45 | 400 | 142 | 36 | T400x72,5x70W |
| EUROTOM | TS45 | 400 | 72.5 | 70 | T400x72,5x70W |
| EUROTOM | TS45S | 400 | 72.5 | 70 | T400x72,5x70W |
| HANIX | H45A,1-type | 400 | 146 | 35 | T400x72,5x70W |
| HANIX | H45A,2-type | 400 | 72.5 | 70 | T400x72,5x70W |
| HANIX | H45,1-type | 400 | 146 | 35 | T400x72,5x70W |
| HANIX | H45,2-type | 400 | 72.5 | 70 | T400x72,5x70W |
| HANIX | N400-2 | 400 | 146 | 35 | T400x72,5x70W |
| HANIX | N450-2 | 400 | 146 | 35 | T400x72,5x70W |
| HANIX | S&B480 | 400 | 146 | 35 | T400x72,5x70W |
| IHI | IS40G,1-type | 400 | 146 | 35 | T400x72,5x70W |
| IHI | IS40G,2-type | 400 | 73 | 70 | T400x72,5x70W |
| IHI | IS40GX,1-type | 400 | 146 | 35 | T400x72,5x70W |
| IHI | IS40GX,2-type | 400 | 73 | 70 | T400x72,5x70W |
| IWAFUJI | CT40N | 400 | 72.5 | 70 | T400x72,5x70W |
| KUBOTA | KX130 | 400 | 142 | 36 | T400x72,5x70W |
| MITSUBISHI | MX45 | 400 | 146 | 35 | T400x72,5x70W |
| NISSAN | N400-2 | 400 | 146 | 35 | T400x72,5x70W |
| NISSAN | N450-1 | 400 | 146 | 35 | T400x72,5x70W |
| NISSAN | N450-2 | 400 | 146 | 35 | T400x72,5x70W |
| NISSAN | N450-2R | 400 | 146 | 35 | T400x72,5x70W |
| NISSAN | S&B480 | 400 | 146 | 35 | T400x72,5x70W |
| PELJOB | EB506 | 400 | 146 | 35 | T400x72,5x70W |
| PELJOB | EB506C | 400 | 72.5 | 70 | T400x72,5x70W |
| PELJOB | EB506C-VV | 400 | 72.5 | 70 | T400x72,5x70W |
| PELJOB | EB506P | 400 | 72.5 | 70 | T400x72,5x70W |
| PELJOB | EB506P-VV | 400 | 72.5 | 70 | T400x72,5x70W |
| PELJOB | LS502,1-type | 400 | 146 | 35 | T400x72,5x70W |
| PELJOB | LS502,2-type | 400 | 72.5 | 70 | T400x72,5x70W |
| SUMITOMO | LS1200FXJ2 | 400 | 72.5 | 70 | T400x72,5x70W |
| SUMITOMO | LS1200FXJ3 | 400 | 72.5 | 70 | T400x72,5x70W |
| SUMITOMO | S120 | 400 | 142 | 36 | T400x72,5x70W |
| SUMITOMO | S120F2 | 400 | 142 | 36 | T400x72,5x70W |
| VERMEER | 247 | 400 | 146 | 35 | T400x72,5x70W |
| VOLVO | EC50 | 400 | 146 | 35 | T400x72,5x70W |
| VOLVO | EC50W | 400 | 146 | 35 | T400x72,5x70W |
6. Advantages
Taite’s tracks are designed to combat the harshest conditions and improve the efficiency of earthmoving work. Our products recognise the importance of productivity. This is why our highly experienced expert technical team is committed to supplying the correct rubber track fitting, to ensure maximum wear-life and minimal down-time.
The powerful traction of Taite’s excavator rubber tracks drive this excavator over rough terrain. Earthmoving, demolition, construction and land scaping applications are all handled with ease. Moreover, our patented Anti-Vibration technology greatly reduces the vibration and therefore prolongs the machine service life and improve the driver’s comfort.
7. Packing & Delivery
8. About Us
Founded in 2003, JIAXING TAITE RUBBER CO., LTD is a Sino-German joint venture specialized in rubber tracks and rubber pads manufacture. Drawing from the decades of R&D experience of our German partner, and by the endeavor of our technical staff, Taite now possesses strong technical resource and several patents in rubber track industry. This enables our products to precede others' in both diversity and quality.
