Product Details:
|

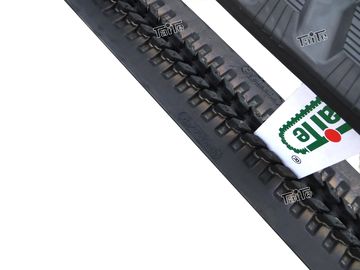

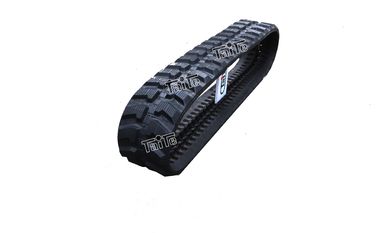

| Name: | Rubber Excavator Tracks | Size: | 300X52.5NX80 |
|---|---|---|---|
| Length: | 4200 Mm | Material: | Rubber, Steel Cord |
| Color:: | Black | Certificate: | ISO9001:2015 |
| High Light: | CAT Conventional Mitsubishi Rubber Tracks,Ihi Rubber Tracks Anti - Vibration |
||
Usage: Widely used for for CAT, HANIX,IHI, MITSUBISHI series excavators. Technique: ontinuous & overlappin
Type: Conventional & interchangeable Supply Ability: 10000 pieces/month
Machine Model: Excavator undercarriage parts rubber track
Working Terrain: Construction site
Advantage: We have our patented “AVT”(anti-vibration) design by an independent acoustic engineer in 2007, and after tests run on 3-5 tons excavators using both soft and hard surface and the average result was an amazing 75% less vibration than ordinary tracks without “AVT” design.
|
Tack Size (WidthxPitch) |
Inner Guide Width (A) | Outer Guide Width (B) | Inner Height (C) | Outer Height(D) | Track Thickness(E) | Lug Pattern | Gude Type | Max Machine Weight (kg) | Remarks |
| 180x72 | 23 | 64 | 29 | 26.5 | 59 | B | A | 1000 | |
| 180x72K | 23 | 65.5 | 29 | 27 | 65 | B | C | 1200 | AVT |
| 190x72 | 23 | 66 | 28.5 | 26 | 67 | B | A | 1300 | |
| 200x72 | 23 | 66 | 29 | 26 | 64 | B | A | 1300 | |
| 200x72K | 23 | 65.5 | 29 | 27 | 65 | B | C | 1400 | AVT |
| 230x72 | 24 | 74 | 29 | 27 | 70 | B/I | A | 1600 | |
| 230x72K | 23 | 71 | 29 | 28 | 70 | B | C | 1800 | AVT |
| 230x48 | 25 | 68.5 | 21.5 | 24 | 68 | A | D | 2100 | AVT |
| 230x48K | 25 | 64 | 19 | 19.6 | 61 | A | K | 2100 | AVT |
| 230x96 | 25 | 68 | 21.5 | 23 | 68 | A | D | 2100 | |
| 250x48.5Y | 27 | 65 | 20 | 18.5 | 74 | K | K | 2500 | AVT |
| 250x52.5 | 30 | 79 | 23.5 | 22 | 75 | A | D | 2500 | AVT |
| 250x72 | 23 | 78 | 30 | 27 | 71 | B | A | 2000 | |
| 250x72K | 23 | 71 | 29 | 28 | 70 | B | C | 2100 | AVT |
| 300x52.5N | 29 | 80 | 24 | 20 | 74 | A | D | 3500 | AVT |
| 300x52.5W | 39 | 92 | 23 | 21 | 76 | A | D | 3500 | AVT |
| 300x53K | 31 | 85 | 24 | 21.5 | 76 | A | K | 4000 | AVT |
| 300x55 | 28 | 82 | 24 | 25.5 | 83 | A | D | 4000 | AVT |
| 300x109 | 36 | 93 | 25 | 27 | 87 | A | D | 4000 | |
| 320x52.5N | 29 | 80 | 24 | 19 | 74 | A | D | 4000 | AVT |
| 350x52.5W | 39 | 92 | 23 | 21 | 76 | A | D | 4500 | AVT |
| 350x54.5K | 40 | 93 | 23.5 | 21.5 | 85 | A | K | 4500 | AVT |
| 400x72.5N | 36.5 | 95 | 26 | 24.5 | 90 | A | E | 5500 | AVT |
| 400x72.5W | 49 | 106 | 24 | 22.5 | 89 | A | D/E | 6000 | AVT |
| 400x72.5K | 47 | 107 | 23.5 | 22 | 87 | A | K | 6000 | AVT |
| 450x71 | 40 | 112 | 30 | 25 | 100 | A | D/E | 8000 | AVT |
| 450x76 | 49 | 118 | 28.5 | 30 | 106 | A | D/E | 8000 | AVT |
| 450x81N | 42 | 110 | 29.5 | 28 | 100 | A | D/E | 8000 | AVT |
| 450X81W | 53.5 | 136 | 29 | 33 | 106 | A | D/E | 8000 | AVT |
| 450x83.5K | 41 | 110 | 23 | 26 | 105 | A | K | 8000 | AVT |
| 450x92 | 61 | 152 | 31.5 | 34.5 | 129 | A | D/E | 12000 | AVT |
Before signing an official contract with our customer we will help to analyze and provide Professional solution based on customer project information and come out with optimum solution.
Your inquiry related to our products or price will be replied in 24hrs during working days.
Keep informing our customer production process and help arrange quality checking in the factory if necessary.
Warranty: guarantee 1000 hours or one year starting from the B/L date, whichever comes first
Buyer can dispatch technician to our factory for free training before delivery.
For essential equipment failure, we will arrange our engineer head to local site to help trouble shooting, also provide online technical support for the whole life.
| Manufacturer | Machine type | orig. Track | TAITE-Track | Alternative | Remark | ||
| CAT | ME 30 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| CAT | ME 30B/30T | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| CAT | MM 30 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| CAT | MM 30B | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | Inner flange track roller, Sprocket Z=21 |
| CAT | MM 30CR-2 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | Inner flange track roller |
| CAT | MM 30SR | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | Inner flange track roller, Sprocket Z=21 |
| CAT | MM 30T | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | Inner flange track roller |
| CAT | MX 35, 1-type | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| CAT | MX 35, 2-type | 300 | 109 | 39 | 300x52,5x80 | 300x109x39 | |
| HANIX | S & B X-1 | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | 30J | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | 30UJ | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | 30Z | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | 32J | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | IS 28 UX-2 | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | IS 30 GX | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | IS 30 J | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | IS 30 UJ | 300 | 52.5 | 80 | 300x52,5x80 | ||
| IHI | IS 30 Z | 300 | 52.5 | 80 | 300x52,5x80 | ||
| MITSUBISHI | MM 30 STANBY | 300 | 52.5 | 80 | 300x52,5x80 | Inner flange track roller | |
| MITSUBISHI | MM 30 CR | 300 | 52.5 | 80 | 300x52,5x80 | Inner flange track roller | |
| SUMITOMO | LS 850UXJ | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | LS 850UXJ2 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | LS 900FXJ2 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | LS 900FXJ3 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | SH 30J | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | SH 30 UJ | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | SH 30 UJ-3 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | SH 30UJ2 | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| SUMITOMO | SH 32J | 300 | 52.5 | 80 | 300x52,5x80 | 300x109x39 | |
| TEKNA | K35S | 300 | 52.5 | 80 | 300x52,5x80 | ||
| YANMAR | B 3U | 300 | 52.5 | 80 | 300x52,5x80 |
